Wilwood Proportioning Valve Lever Type

Wilwood's adjustable proportioning valve delivers precise pressure metering and strength from a compact forged billet design.

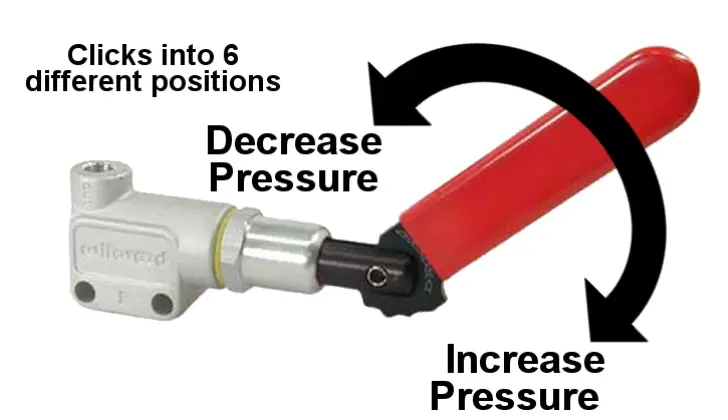

Pressure adjustments range from 150-1200 PSI and provide a maximum decrease of 57% in line pressure, the most of any available valve. This proportioning valve has six preset points actuated by moving a lever allowing racers to quickly adjust brake bias during a race. The lever clicks into the six positions for positive adjustment. Valves is light weight and has two 1/4" side mounting holes spaced 1" apart. The inlet and outlet ports are 1/8"-27 NPT pipe thread.
